Tough Enclosures for Critical Equipment and Systems

Earthsafe enclosures are designed for toughness to protect critical equipment and systems using welded aluminum (optional stainless steel) tube structures. Our tension fabric structures are a lightweight and cost-effective alternative to metal wall panels.

Customized for the Application with a Range of Accessories:

  • Insulated Enclosures
  • Ventilation. Heating, and Cooling
  • Lighting and Controls
  • Fireproof Construction
  • Liquid Containment Systems
  • Remote Monitoring and Communication
  • Power Systems

Modular Enclosure Systems for Adaptive Use

Earthsafe Enclosures are designed for wide application using modular elements:

  • E1 Critical Equipment Enclosures
  • E2 Water Infrastructure Enclosures
  • E3 Critical System Enclosures
  • E4 Tensioned Fabric Enclosures
  • E5 Humanitarian Shelters and Dwellings

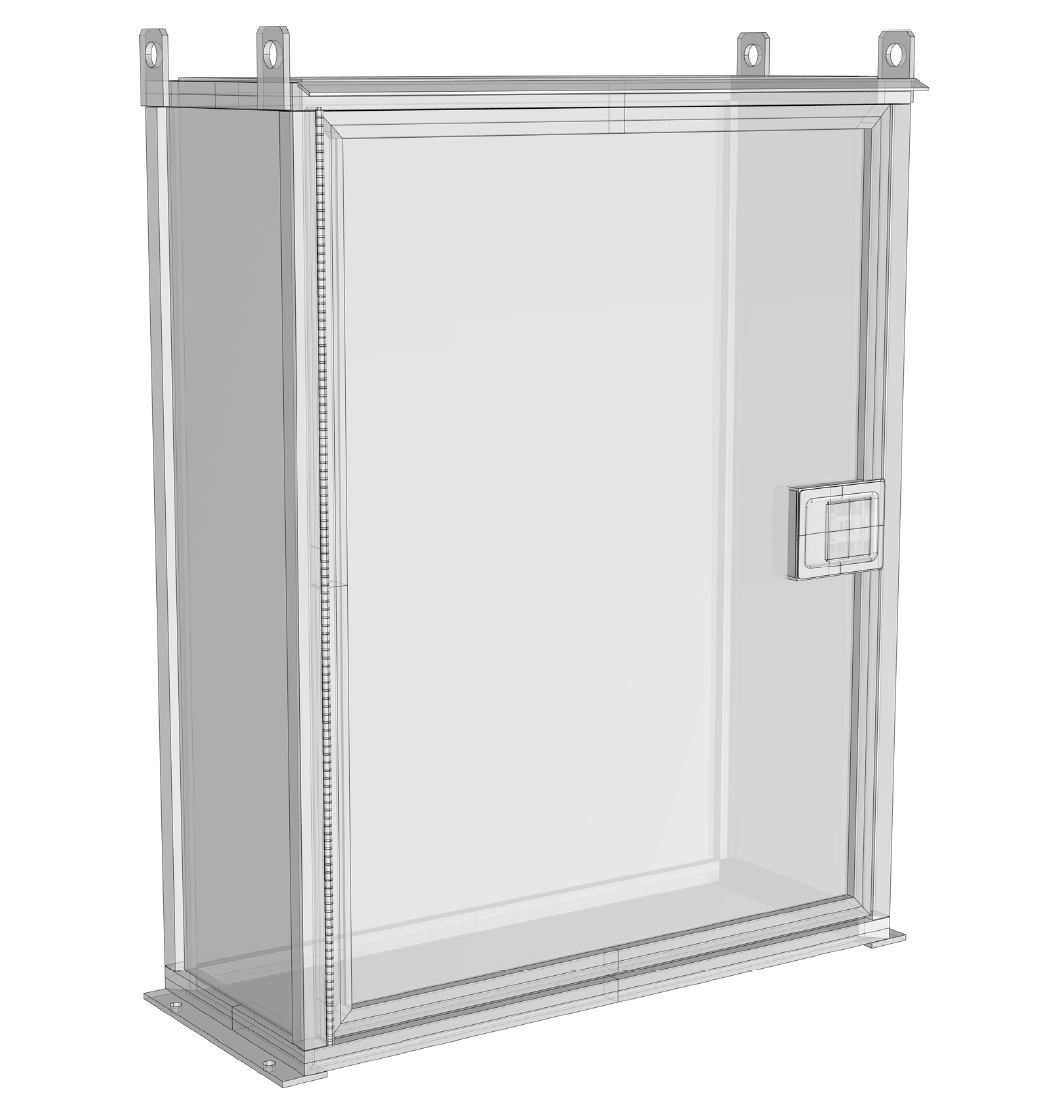

enclosure 1

E1 Critical Equipment Enclosures

E1 Critical equipment enclosures are designed to protect mechanical and electrical systems from a variety of environmental hazards, including water, dust, and other contaminants. These enclosures are typically made from high-quality materials such as stainless steel or aluminum, which are known for their durability, corrosion resistance, and ability to withstand harsh environmental conditions.

One of the primary functions of critical equipment enclosures is to provide a watertight seal around the equipment they are designed to protect. This is especially important for mechanical and electrical systems, which can be damaged or rendered inoperable by exposure to moisture. Enclosures that are designed to be watertight typically use a variety of sealing methods, such as gaskets, seals, and compression fittings, to ensure that water cannot penetrate the enclosure.

In addition to providing protection from water and other environmental hazards, critical equipment enclosures can also be designed to provide a number of other features and benefits. For example, enclosures can be designed to be fire-resistant, with features such as insulation and fireproof materials that help to prevent the spread of flames. They can also be designed to provide ventilation and cooling, with features such as fans, air conditioning units, and passive ventilation systems that help to regulate temperature and prevent overheating.

Overall, critical equipment enclosures are an important tool for protecting mechanical and electrical systems from a variety of environmental hazards. By providing a durable, watertight seal around critical equipment, these enclosures help to ensure that the equipment remains safe and operational, even in the harshest of conditions.

Applications include:

  • Pump, Filter, Meter, Additive, Test Systems
  • Power, Control, and Instrumentation
  • Solar Energy Systems

Download the Data Sheet

Download Submittal Drawing

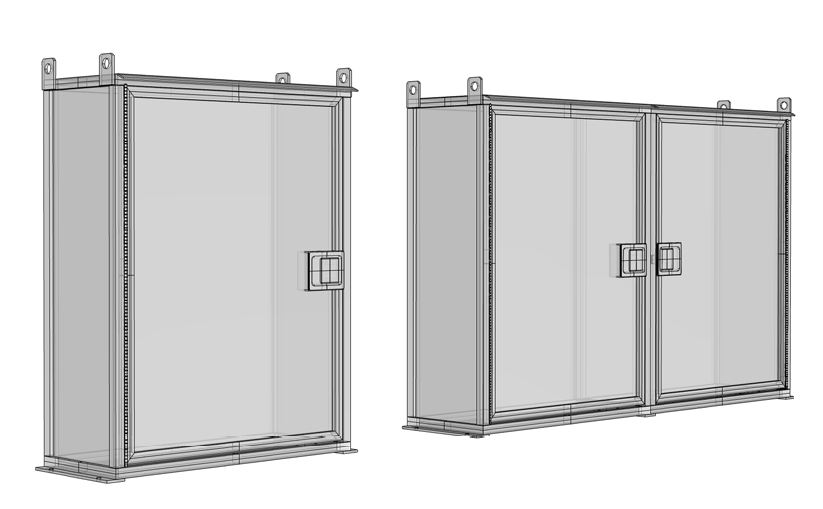

enclosure 2

E2 Water Infrastructure Enclosures

E2 Water System Enclosures are designed to protect aboveground water system components and systems.  The construction is weatherproof non-corrosive aluminum, or optional stainless steel. The tubular welded frame provides impact protection and security.

Earthsafe builds these aluminum enclosures to ASSE 1060 standards. ASSE 1060 is a standard for aluminum enclosures used to protect backflow prevention assemblies (BPAs) from the environment.

In terms of weight, ASSE 1060 specifies that the enclosure should be lightweight yet durable enough to withstand the elements and protect the BPAs inside. This is important because a heavy enclosure may put excessive weight on the BPAs, which can lead to premature failure or damage. A lightweight enclosure also makes installation and maintenance easier.

The strength of the enclosure is also critical, especially when considering the potential for people to walk on top of it. ASSE 1060 mandates that the enclosure be strong enough to support the weight of maintenance personnel and equipment, as well as any snow or ice loads that may accumulate on top of the enclosure.

Thermal properties are also important to consider. ASSE 1060 specifies that the enclosure should be able to withstand extreme temperatures and weather conditions without degrading or compromising the integrity of the enclosure. This is especially important when the enclosure is used in outdoor environments where it may be exposed to harsh elements. ASSE 1060 classifies thermal properties into four different classes.

Lastly, the enclosure should allow for fluid to run out the bottom if water lines inside the enclosure break. This is to prevent water damage and ensure that the BPAs remain protected. ASSE 1060 requires that the enclosure be designed with drainage systems to ensure that any fluids are properly evacuated.

Applications include:

  • Back Flow Prevention Protection
  • Pump, Valve, Meter Enclosures
  • Instrumentation and Control
  • Water Monitoring and Treatment

Download the Data Sheet

Download Submittal Drawing

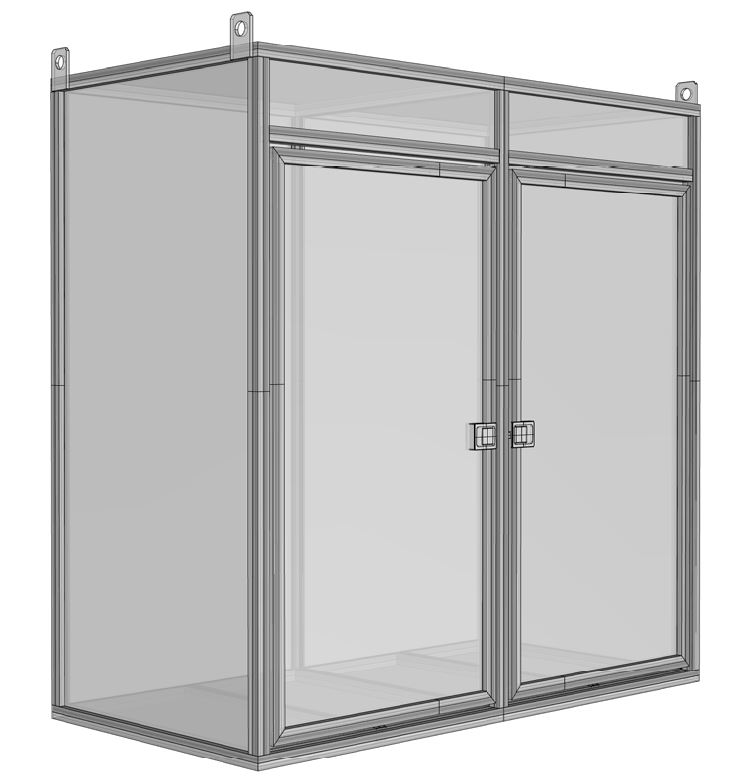

enclosure 3

E3 Critical System Enclosures

E3 Critical equipment enclosures are designed to be walk-in to provide a larger space for workers to access and maintain mechanical and electrical systems. These enclosures are often used for critical equipment that requires routine maintenance or repairs, as well as for systems that require frequent monitoring or adjustments.

Enclosures that are designed to be walk-in typically have a larger footprint than enclosures that are designed for smaller equipment. They are made from high-quality materials such as stainless steel or aluminum, which provide durability, corrosion resistance, and the ability to withstand harsh environmental conditions.

To ensure that the enclosure is watertight, a variety of sealing methods are used, such as gaskets, seals, and compression fittings. The enclosure can also be designed with a sloped floor and drain to ensure that any water that enters the enclosure can be easily drained away.

To provide access to the interior of the enclosure, a door or series of doors is typically included. These doors are designed to be watertight and can be equipped with locking mechanisms for security.

In addition to providing a larger space for workers to access and maintain critical equipment, walk-in enclosures can also be designed to provide a range of other features and benefits. For example, they can be designed to be fire-resistant, with insulation and fireproof materials that help to prevent the spread of flames. They can also be designed to provide ventilation and cooling, with features such as fans, air conditioning units, and passive ventilation systems that help to regulate temperature and prevent overheating.

Overall, critical equipment enclosures that are designed to be walk-in are an important tool for protecting mechanical and electrical systems from a variety of environmental hazards. By providing a larger space for workers to access and maintain equipment, these enclosures help to ensure that critical systems remain operational and efficient, even in the harshest of conditions.

Applications include:

  • Tank Enclosures: Engine Fluids: Diesel, DEF, Oil
  • Engine, Pump, and Generator Enclosures
  • Water and Water Recycling Systems
  • Rail and Transportation Systems
  • Power and Telecom Utility Systems
  • Environmental Monitoring

Download the Data Sheet

Download Submittal Drawing

enclosure 4

E4 Tensioned Fabric Enclosures

E4 tensioned fabric enclosures are a type of protective structure that use a combination of high-strength fabric materials and tensioning systems to create a durable and versatile enclosure. These enclosures can be used to protect a wide range of electrical and mechanical systems, including generators, switchgear, transformers, and other critical equipment.

One of the main advantages of tensioned fabric enclosures is their ability to provide effective protection while also being lightweight and easy to install. The high-strength fabrics used in these enclosures are designed to be weather-resistant, fire-retardant, and able to withstand a variety of environmental conditions, including high winds, heavy rain, and snow.

Tensioned fabric enclosures can be designed to be both fixed or movable, depending on the specific needs of the application. They can also be customized to fit a wide range of shapes and sizes, making them ideal for protecting a variety of different types of electrical and mechanical systems.

In addition to providing effective protection from the elements, tensioned fabric enclosures can also offer a number of other benefits. For example, they can be designed to be energy-efficient, with features such as insulation and passive ventilation systems that help to maintain a stable temperature and reduce heating and cooling costs.

Overall, tensioned fabric enclosures can be an effective solution for protecting electrical and mechanical systems in a variety of different applications. By providing durable, weather-resistant protection that is also lightweight and easy to install, these enclosures can help to ensure that critical equipment remains safe and functional in even the harshest environments.

Applications include:

  • Electrical and Control Panel Protection
  • Engine, Pump, and Generator Enclosures
  • Water and Water Recycling Systems
  • Power and Telecom Utility Systems
  • Environmental Monitoring

Download the Data Sheet

Download Submittal Drawing

canvas cluster

E5 Humanitarian Shelters and Dwellings

Earthsafe designs, and builds systems for humanitarian applications via our non-profit Urban-Camp, Inc.

Visit www.urban-camp.org

Request a Proposal for Buy or Lease

Contact Earthsafe for a price proposal on a system configured to meet your specific application.
