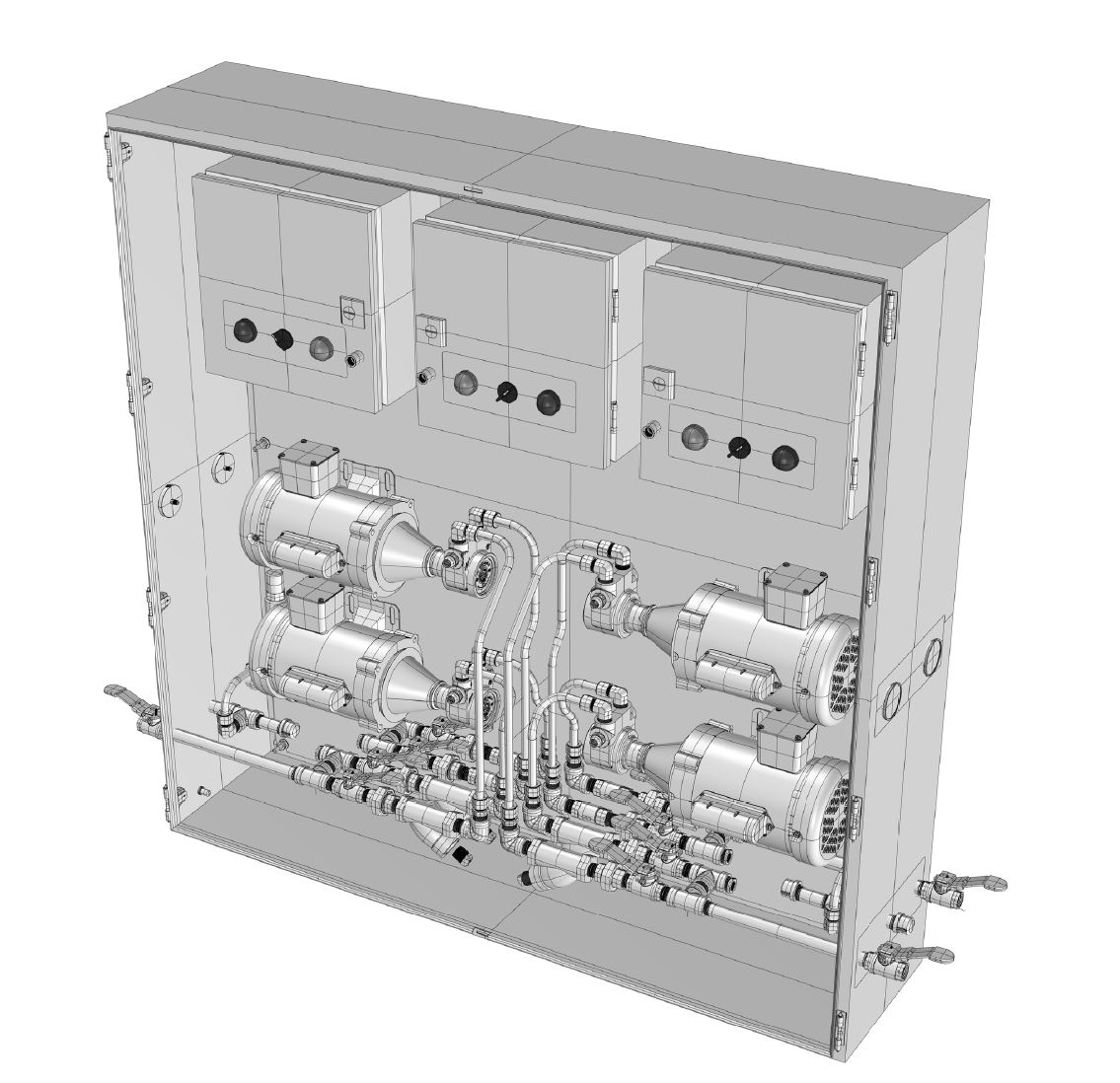

D2-M2 Diesel + DEF Duplex Pump Set
Compact reliable system for transferring diesel and DEF from storage tanks to generators. New generator systems will include emissions control based on reliable supply of DEF along with diesel fuel to run engines.
The D2-M2 is space saving but with redundant reliability for critical applications.
Data Sheet:
esds-d2-m2-diesel-plus-def-duplex-pump-data-01
Dimension Drawing:
esdw-d2-m2-diesel-plus-def-duplex-pump-drawing
Instruction Manual:
Download the CSI Format Specification
General:
- Connection: Diesel 0.75 IN (19), DEF 0.50 IN (12)
- Motor: TEFC
- Power: 120-230 VAC, 1 Phase, 50-60 HZ
- Enclosure: Weatherproof NEMA 4, (IP 65) Stainless Steel.
Accessories:
- Ball Valve and Check Valve
- Pressure / Vacuum Gauges
- Inlet Strainers
- Integral Relief Valves
- Spill Containment 3 GAL
- Motor Starters with Overload Protection
- C8 Controllor with Color HMI
- Optional: Multi-Tank Selection
- Floor Mount Stand 24 IN (600) Height
Safe Fuel Tank Transfer:
Compact reliable system for transferring diesel and DEF from storage tanks to generators. New generator systems will include emissions control based on reliable supply of DEF along with diesel fuel to run engines.
The D2-M2 is space saving but with redundant reliability for critical applications.
Adaptable to User Requirements:
The fill station is designed for 1-4 fuel and DEF tanks and can be adapted for multi-tenant use. The system accepts hose connections from pump equipped fuel and DEF delivery trucks.
